GP70 - GoboPac 70 - 4’ W x 7’ H Portable Gobo for Speech and Vocals

ClearSonic GoboPac 70 Portable Gobo
Vocal Gobo Package with Acrylic Sound Shields and Sorber Sound Absorption Baffles
Dimensions: 4’ W x 7’ H
Part Number: GP70

GoboPac 70 Features

• Modular and expandable
• Great for translators, interpreters, podcasters, vocalists, voice-over and studio, House of Worship, conference, and classroom environments
• Compact translation or vocal gobo for one person
• Cuts down on mic bleed and gives soundperson greater control over the mix
• The A2466x2 acrylic drum shield acts as a sound barrier paired with the inner S2233, S2224, & S2216 Sorber baffles to offer effective sound isolation and absorption
• 21 square feet of sound absorbing Sorber baffles provide volume reduction
• Cable cutouts allow for easy cable routing to your gear
• The 18” H AX2418x2 Acrylic Drum Shield Height Extenders provide an ample 7’ of height

Acrylic Drum Shield Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.


• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro.

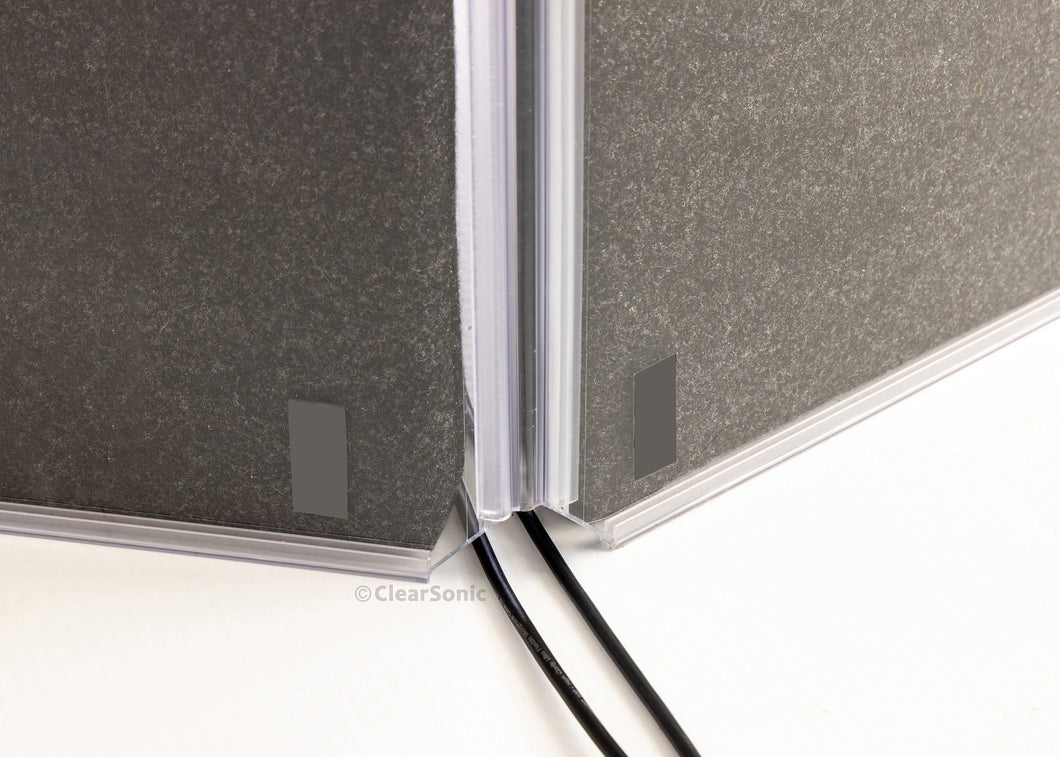

• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.

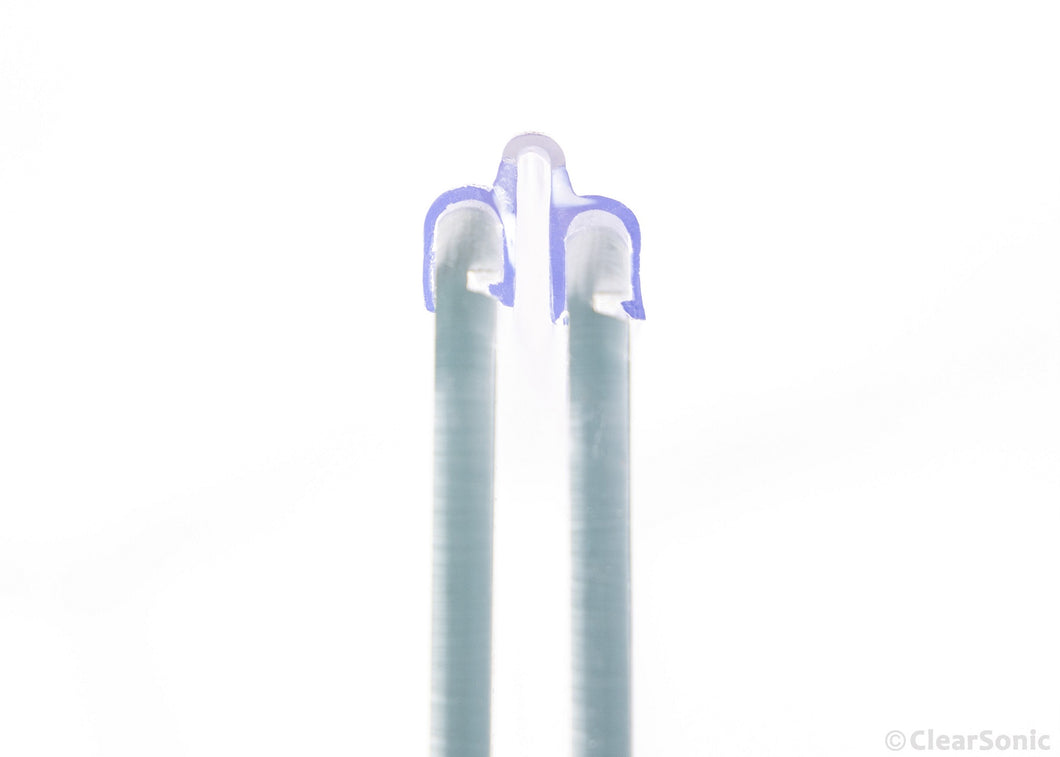

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.

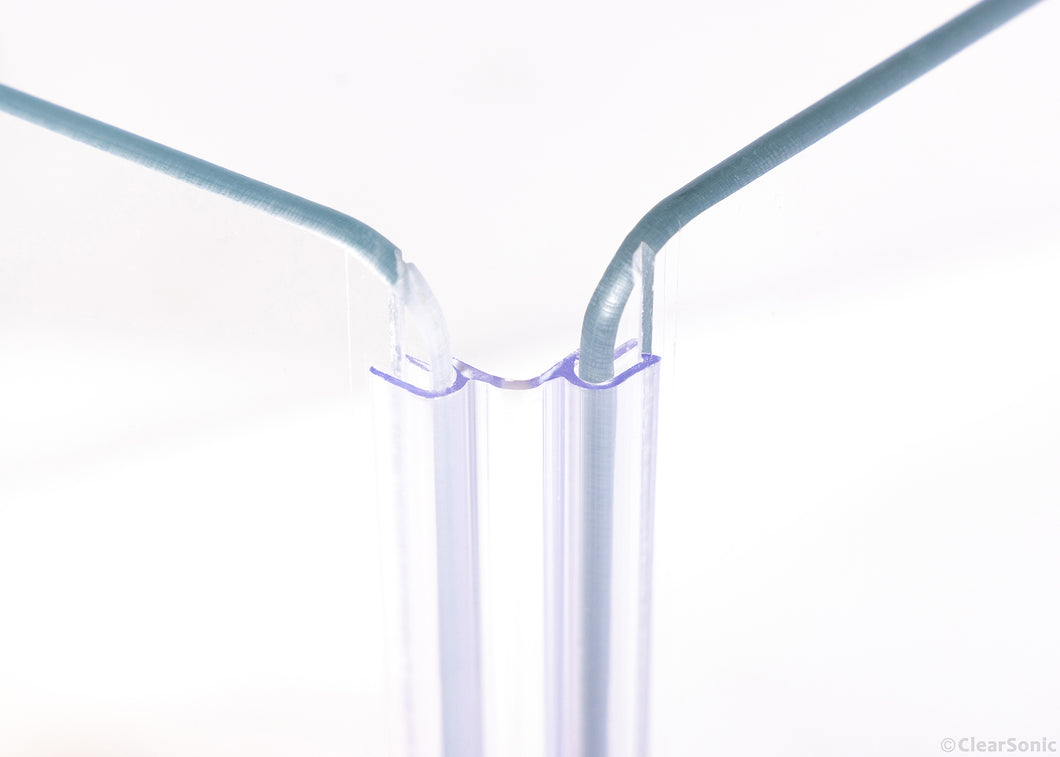

• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.


• Low profile – allows for better aesthetics as hinge blends into the shield better.

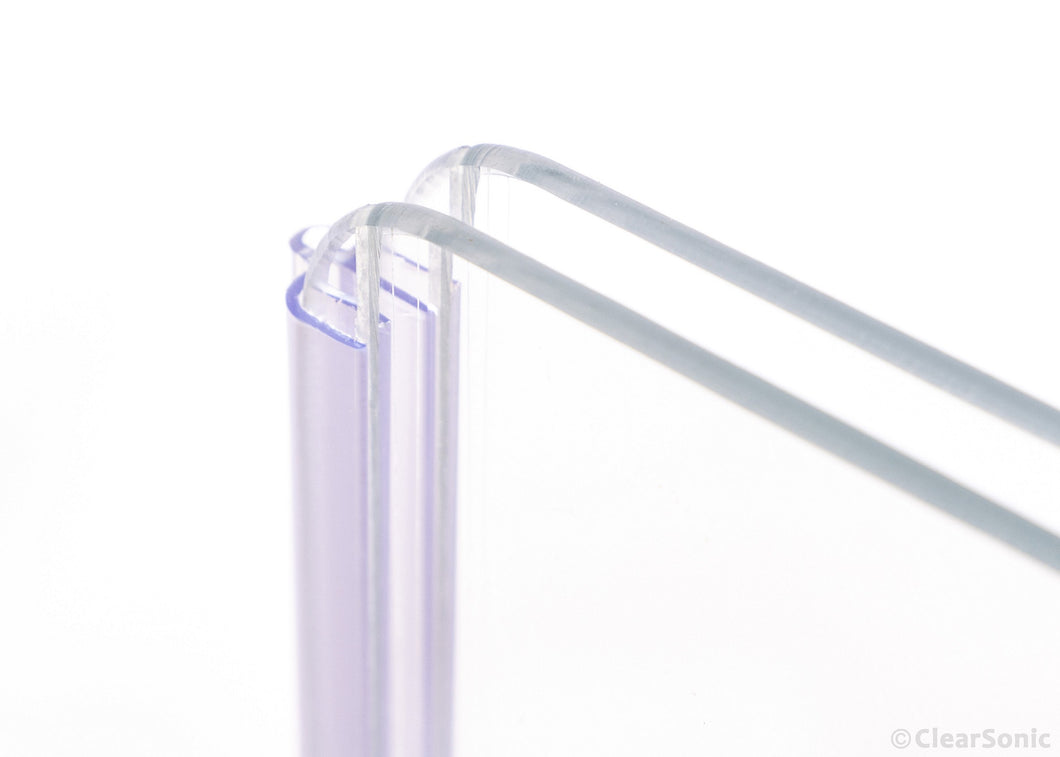

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

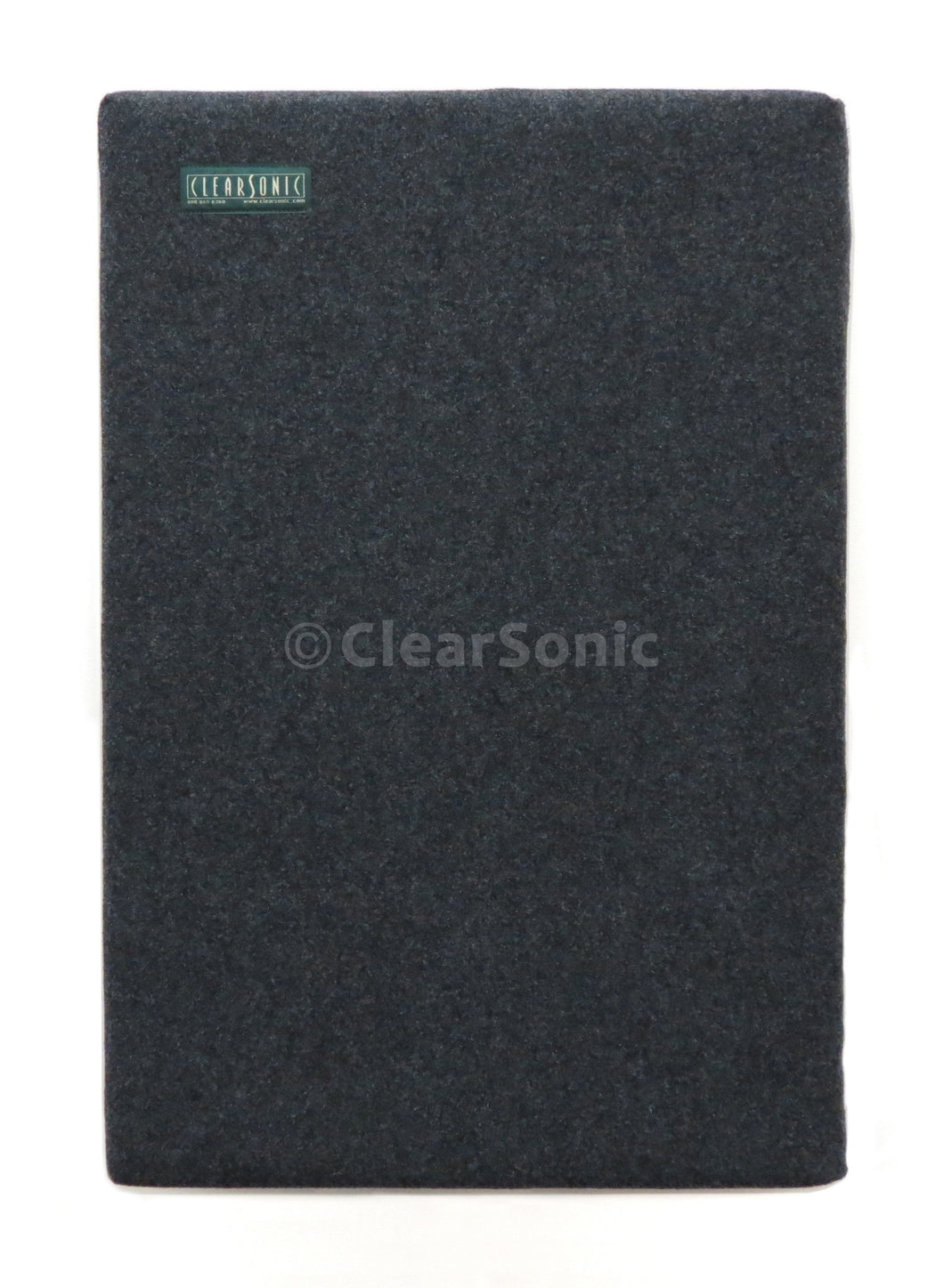

Sorber Features

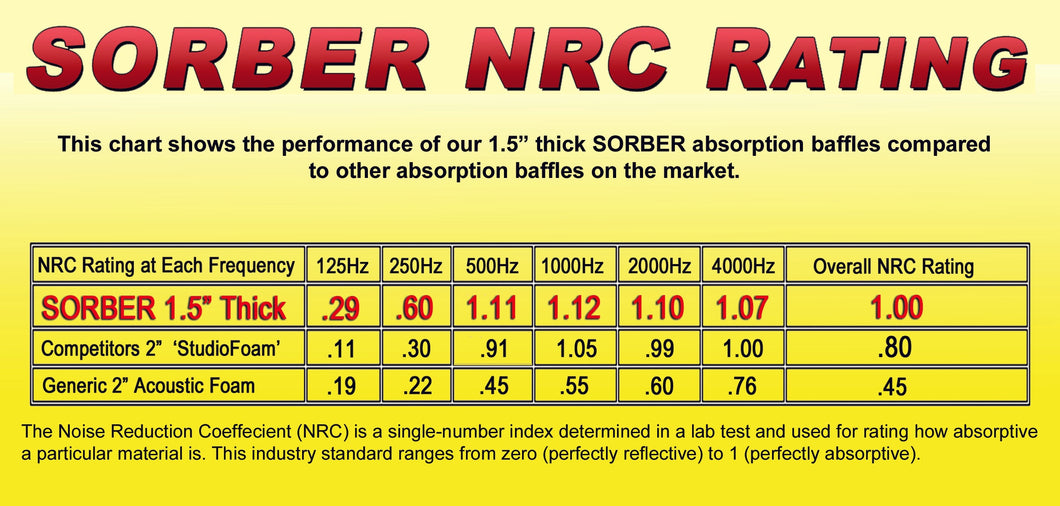

• 1.6” thick rigid fiberglass core - provides superior sound absorption compared to acoustic foam and other fiberglass baffles. Allows panels to free stand (S2466x2) or lay on top of an acrylic shield (LidPacs).

• Velcro-receptive acoustic fabric jacket – provides another layer of sound absorption and allows Sorber baffles to attach to acrylic material or other Sorber baffles with Velcro.

• Sewn seams – fabric jacket fully covers inner fiberglass. No glue is used and there is no exposed fiberglass.

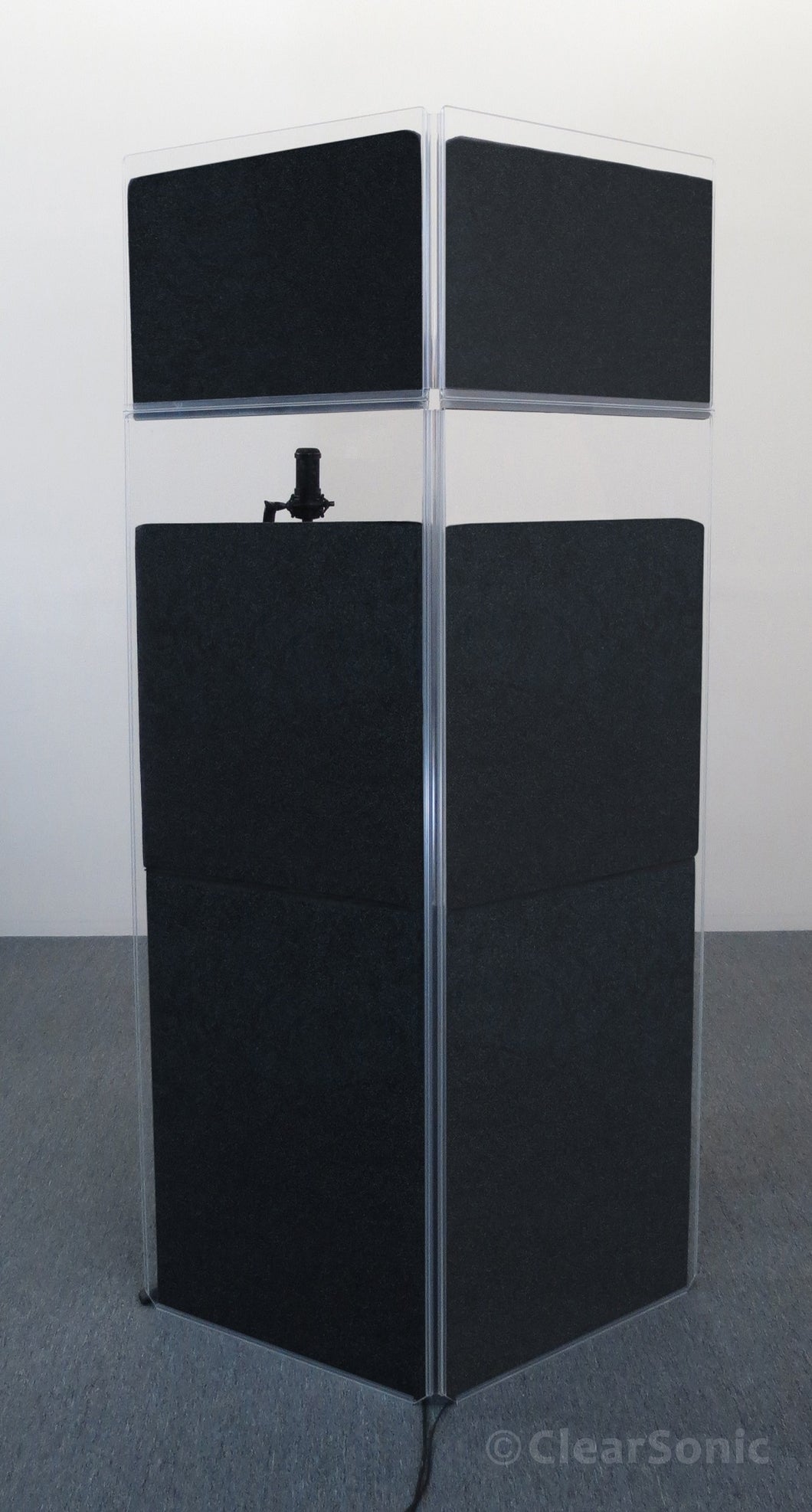

Variable footprint of about 4’ W x 2’ D x 7’ H

-Features S2233 (22” W x 33” L) Sorber baffles, S2224 (22” W x 24” L) Sorber baffles, and S2216 (22” W x 16” L) Sorber baffles

Recording vocals in a noisy environment? If you’re recording in one room and isolation booths don’t make sense, ClearSonic GoboPacs will help create a more ideal acoustic space wherever you are, so you can spend less time worrying about acoustics and more time getting great sounding mixes.

Even in a perfect acoustic space, gobos are necessary if you’re tracking more than one instrument at once. Our gobos are the perfect solution to cut down on microphone bleed and environmental noise to achieve quieter volume levels and better mixes for home and studio recording, translation and interpretation services, and classroom and conference environments. In addition to vocals, they work great for guitar, horn, drums, or any sound source.

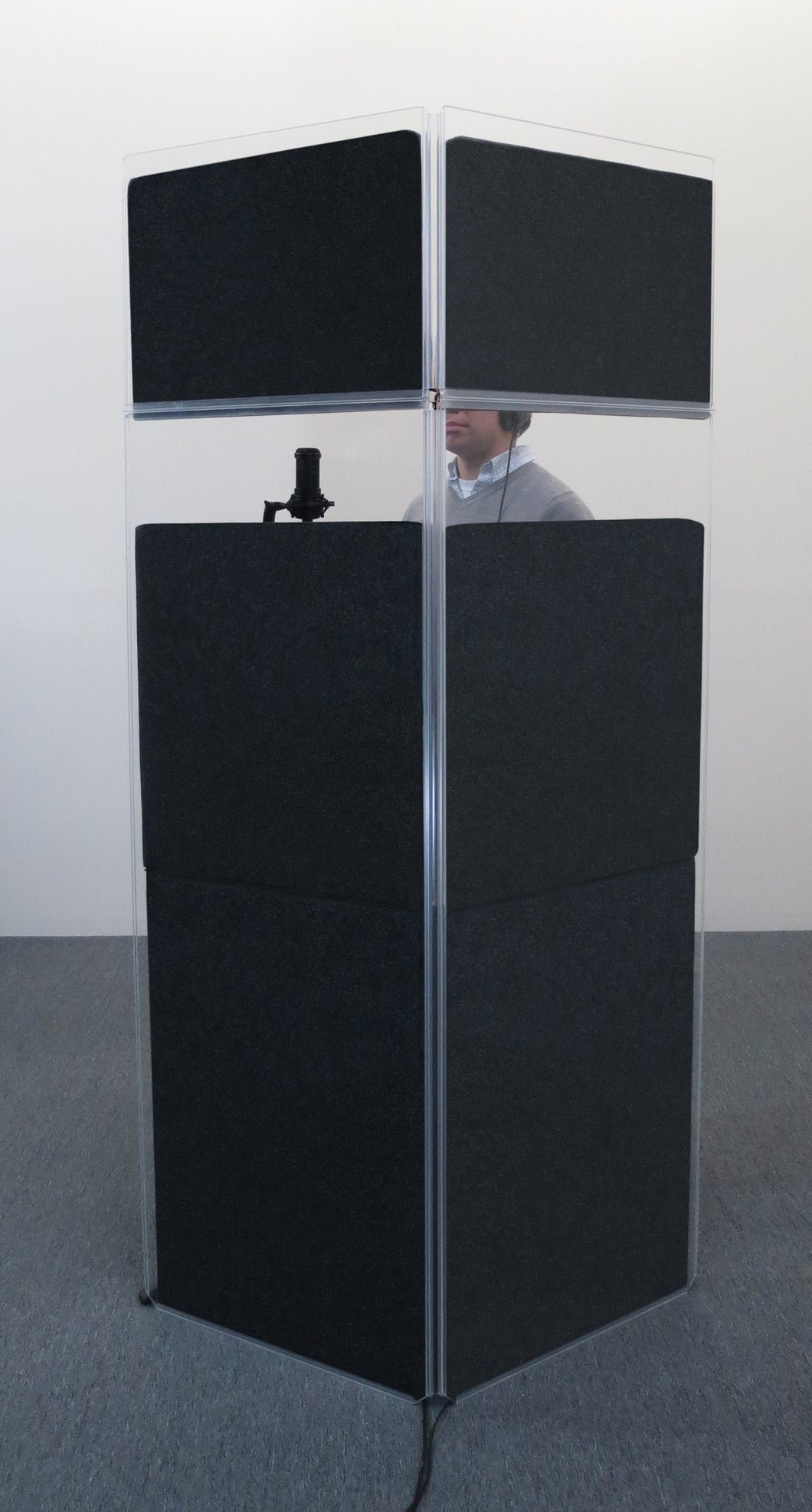

The GoboPac 70 is designed to be a vocal gobo for one person and offers quick and convenient sound isolation and volume reduction. This package is simple but effective because of the combination of reflective and absorptive materials - the acrylic drum shield acts as a sound barrier while the Sorber sound absorption baffles absorb sound waves, making this a perfect tool to create separation between instruments and reduce external noise.

Your vocal mic nestles into the acrylic drum shield and acoustic treatment to provide a more optimal recording environment, so you can be sure your vocals will sound clean and clear.

All of our GoboPacs are modular, portable, and feature full-length, flexible, yet robust plastic hinges that utilize our ‘tooth in groove’ mechanical lock to securely snap into place for a firm connection between panels, cable cutouts to easily organize cables running to your gear,  sound absorbing Sorber baffles, and the highest quality ¼” thick acrylic material to provide a gobo that is functional, stable, and aesthetically pleasing.

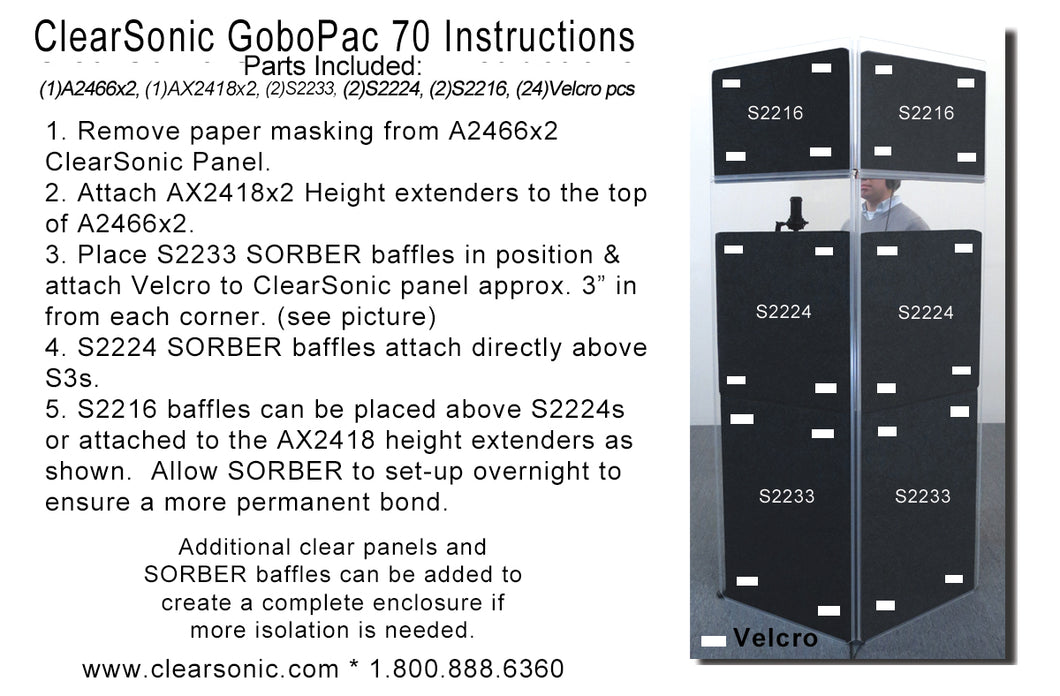

Parts List:

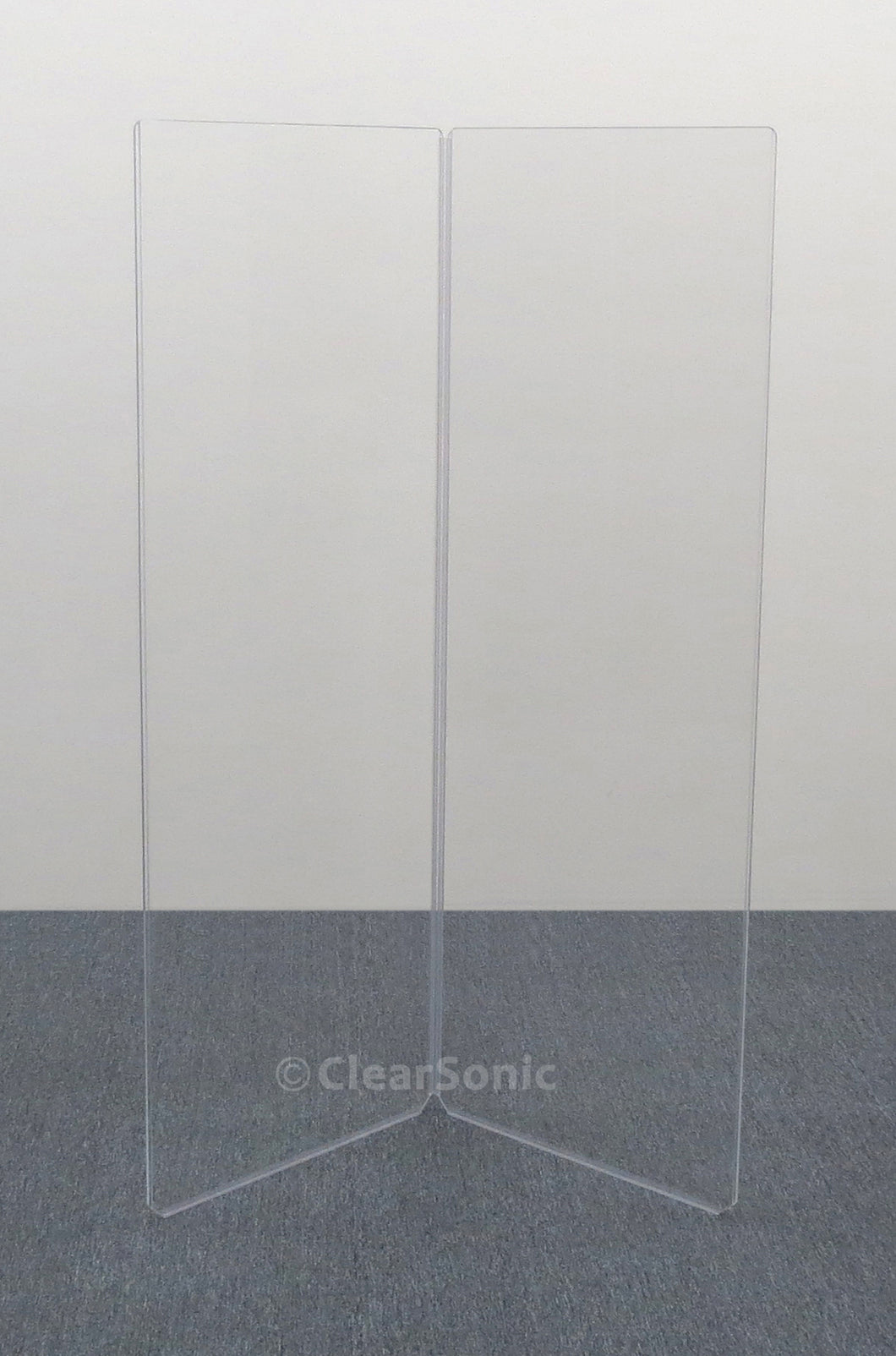

(1) A2466x2 – 2-panel acrylic drum shield, each panel measures 24” W x 66” H

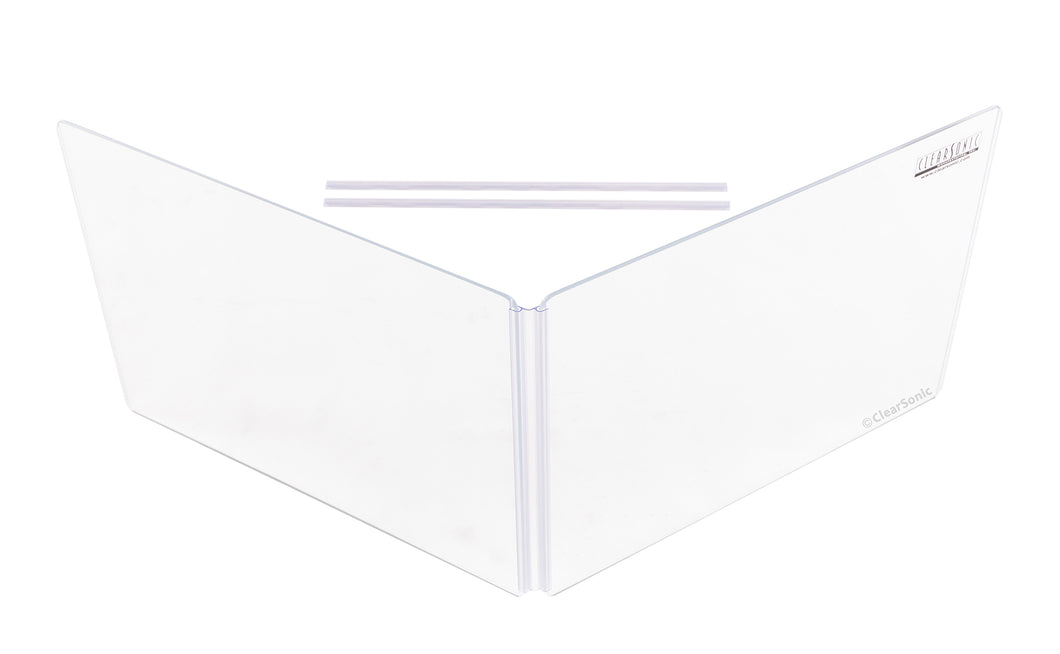

(1) AX2418x2 – 2-panel, 18” H acrylic drum shield height extender, provides 7’ headroom
(2) S2233 - 22” W x 33” L Sorber sound absorption baffle

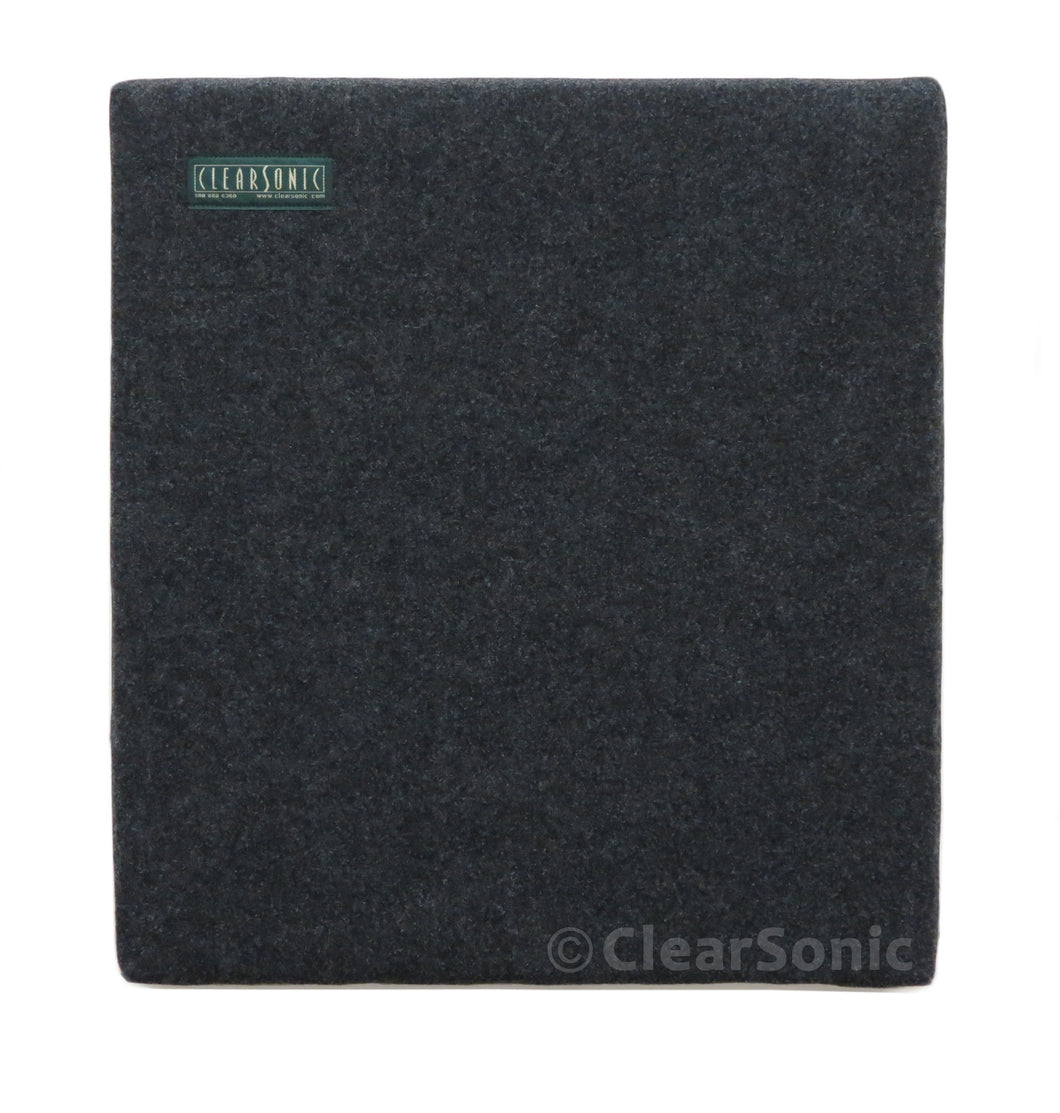

(2) S2224 - 22” W x 24” L Sorber sound absorption baffle

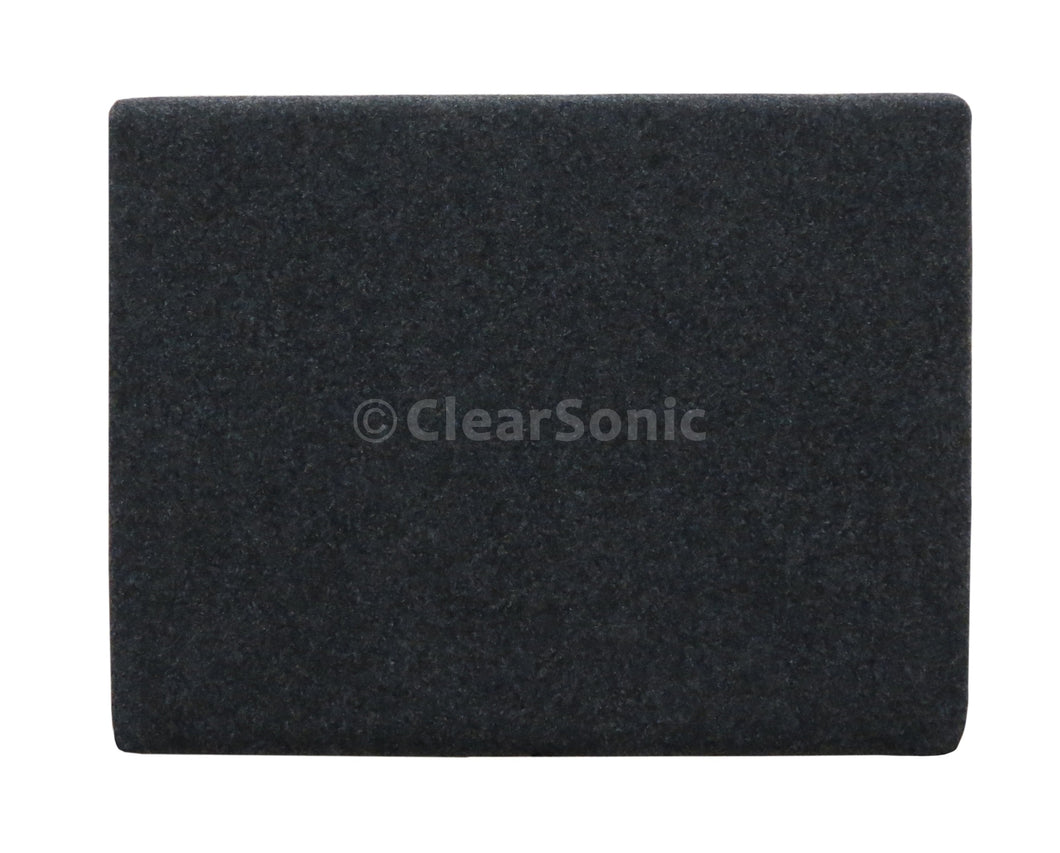

(2) S2216 - 22” W x 16” L Sorber sound absorption baffle
