LP2 - LesliePac 2

ClearSonic LesliePac 2 Portable Guitar Amp Isolation Booth
Guitar & Leslie Iso Booth Package with Acrylic Amp Shield and Sorber Sound Absorption Baffles
Dimensions: 45” W x 30” D x 48” H
Part Number: LP2

LesliePac 2 Features

• Designed to work with most Leslies & 4x10 or 4x12 speaker cabinets and combo amps
• Closed top offers maximum sound absorption
• Modular and expandable if more room is ever needed
• Great for studio, stage, and House of Worship
• Large enough footprint to fit microphone inside
• Cuts down on mic bleed and gives soundperson greater control over the mix
• The A2448x6 acrylic amp shield, inner S2233, and top S2448 Sorber baffles offer 360 degrees of sound isolation and absorption
• 38 square feet of sound absorbing Sorber baffles provide volume reduction
• Cable cutouts allow for easy cable routing to your gear

Acrylic Amp Shield Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.


• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro.

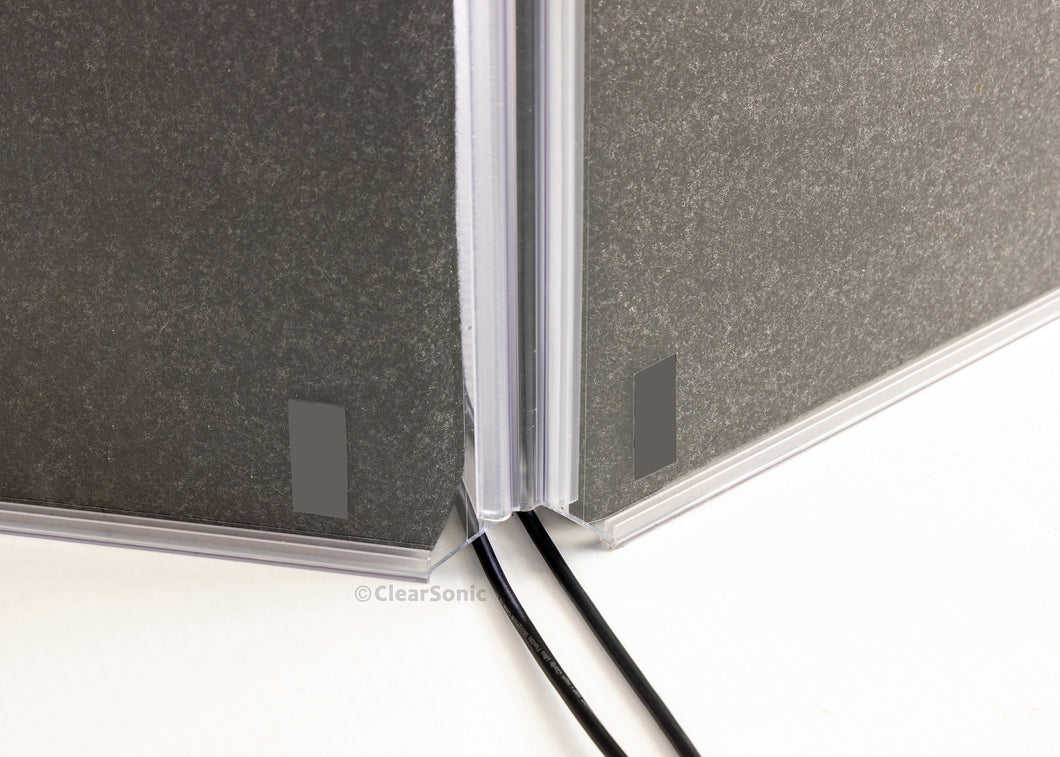

• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.

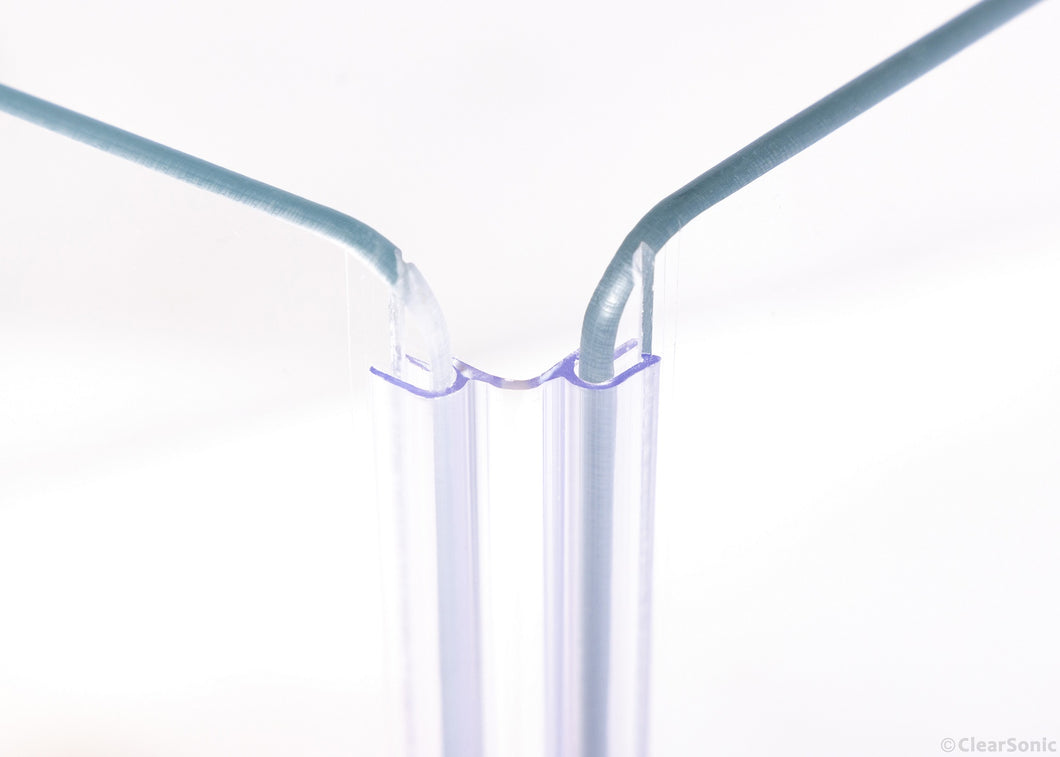

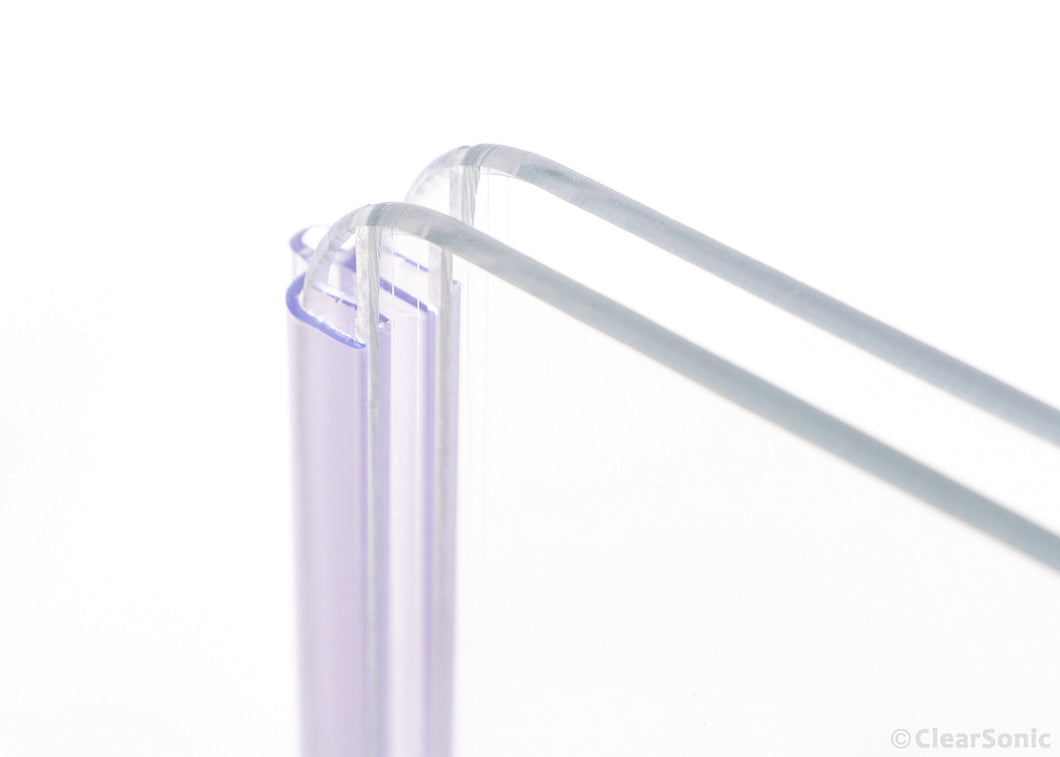

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.


• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.


• Low profile – allows for better aesthetics as hinge blends into the shield better.

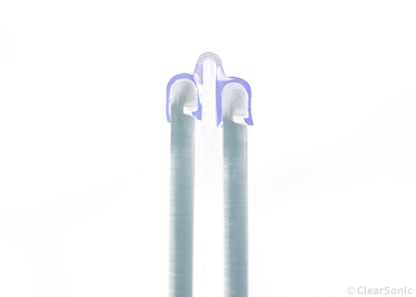

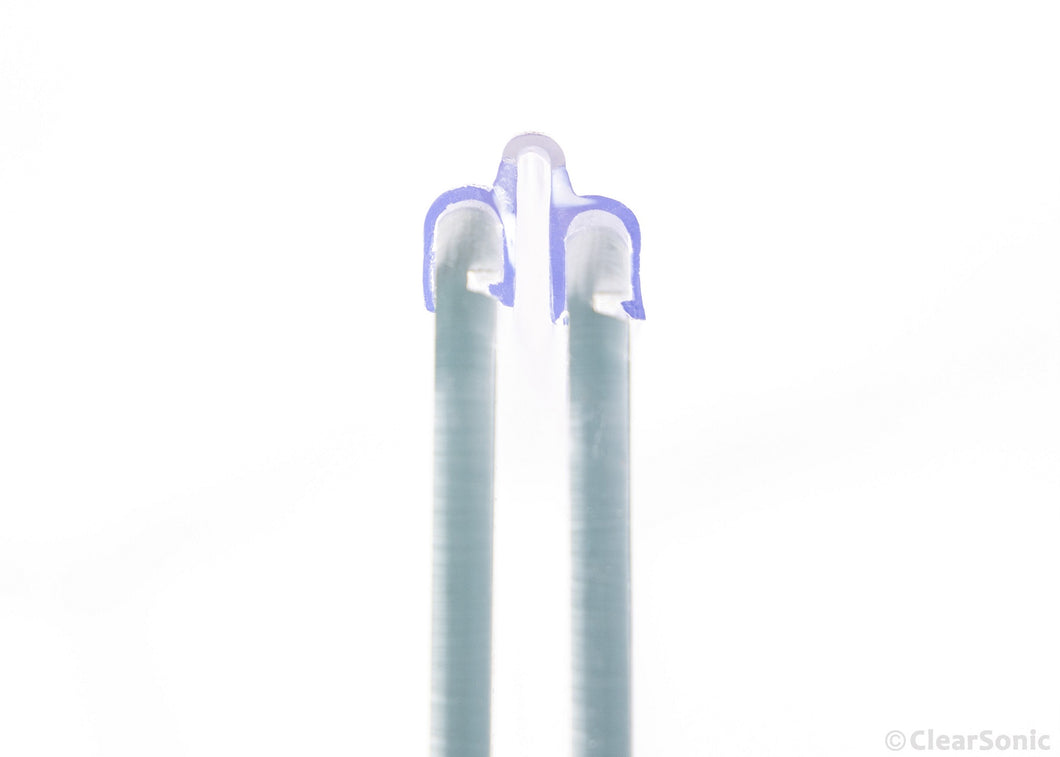

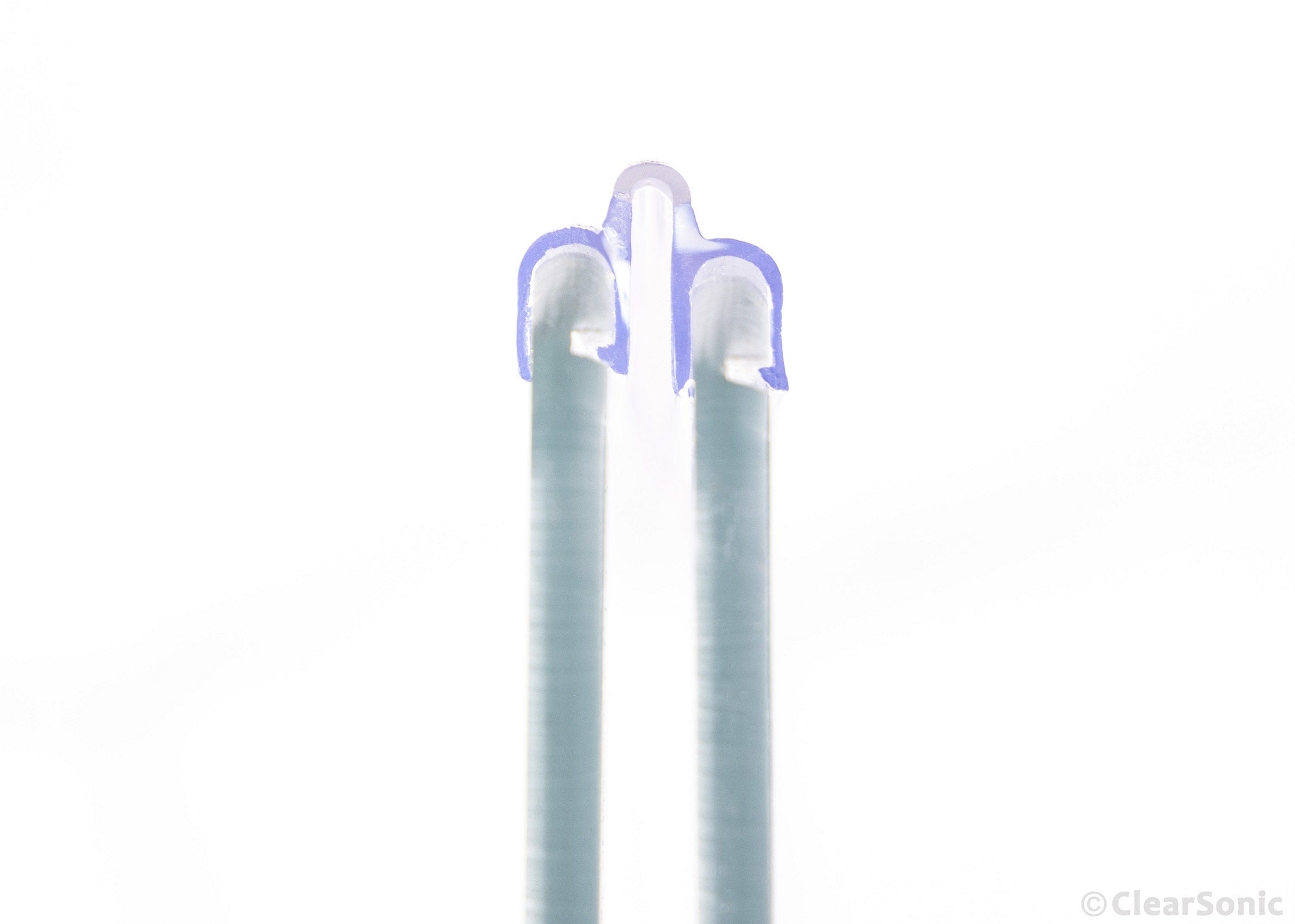

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

Sorber Features

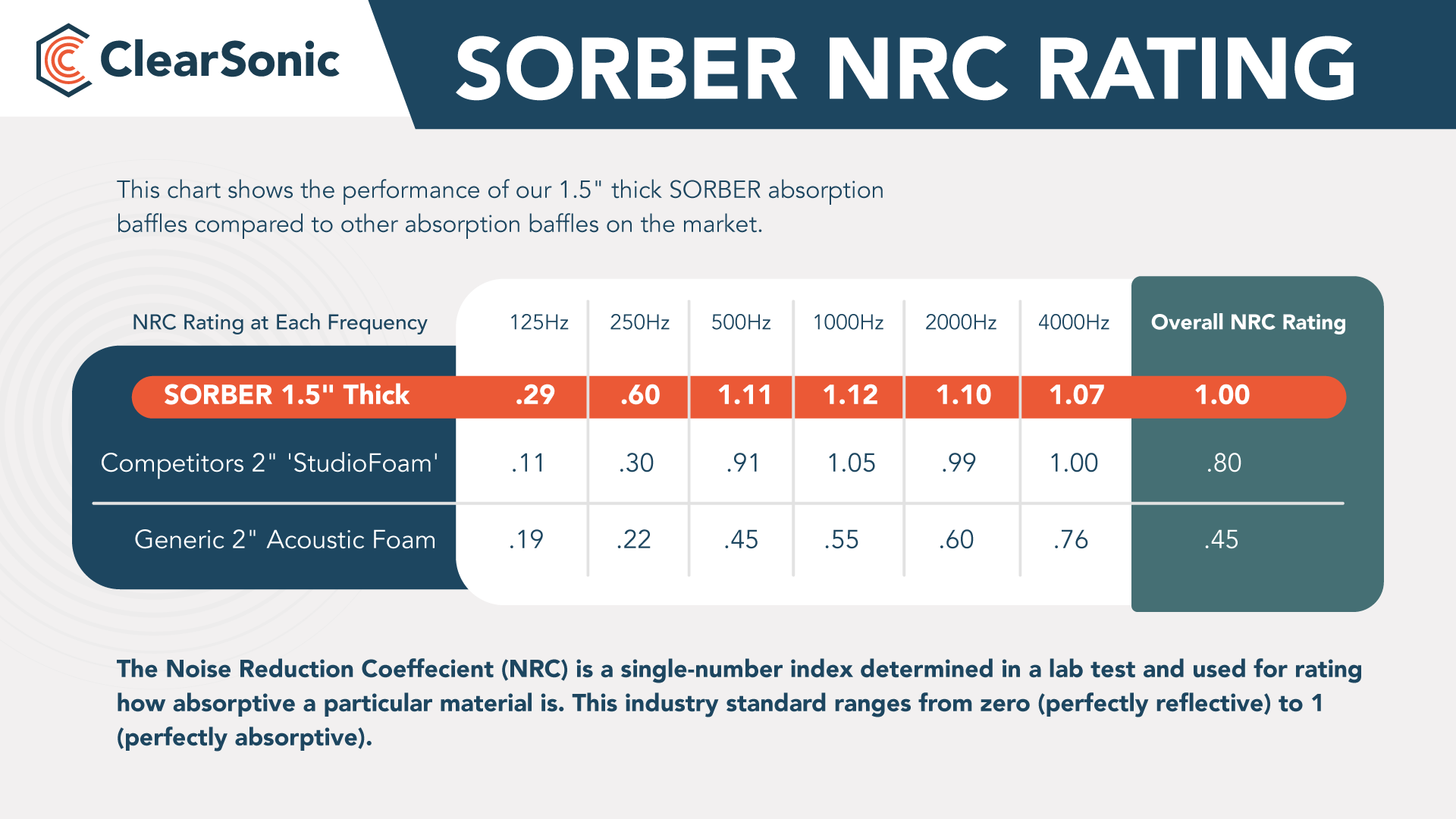

• Proprietary 1.6” thick rigid fiberglass core - provides superior sound absorption compared to acoustic foam and other fiberglass baffles. Allows panels to free stand (S2466x2) or lay on top of an acrylic shield (LidPacs).

• Velcro-receptive acoustic fabric jacket – provides another layer of sound absorption and allows Sorber baffles to attach to acrylic material or other Sorber baffles with Velcro.

• Sewn seams – fabric jacket fully covers inner fiberglass. No glue is used and there is no exposed fiberglass.

Variable footprint of about 45” W x 30” D x 48” H

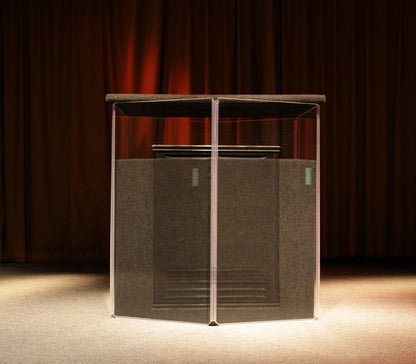

The LesliePac 2 is designed for Leslie speakers but will also work for larger guitar amps. The LP2 will help keep you and your sound person, roommate, or significant other happy by allowing you to maintain your amp volume for proper tube breakup while keeping projected sound to more reasonable levels. Our LesliePacs utilize our acrylic shields to reflect and isolate sound waves, allowing our Sorber sound absorption baffles to do what they do best – bring down the volume.

This 45” W x 30” D x 48” H amp isolation booth features an A2448x6 acrylic amp shield lined with S2233 Sorber sound absorption baffles that wrap all the way around your amp to lower stage volume and create better separation between instruments for live performance and recording.

Expanding on the LP1, this package features an S2448 Sorber baffle as a lid to minimize sound that would escape upward out of the booth and provide maximum sound absorption. Guitarists please note, if using the LP2 with a half-stack rig with a head , your head unit may need to be placed on the floor or outside the booth due to available space and for easier access to the controls.

All of our isolation booths are modular, portable, and feature full-length, flexible, yet robust plastic hinges that utilize our ‘tooth in groove’ mechanical lock to securely snap into place for a firm connection between panels, sound absorbing Sorber baffles, and the highest quality ¼” thick acrylic material to provide a booth that is functional, stable, and aesthetically pleasing.

Parts List:

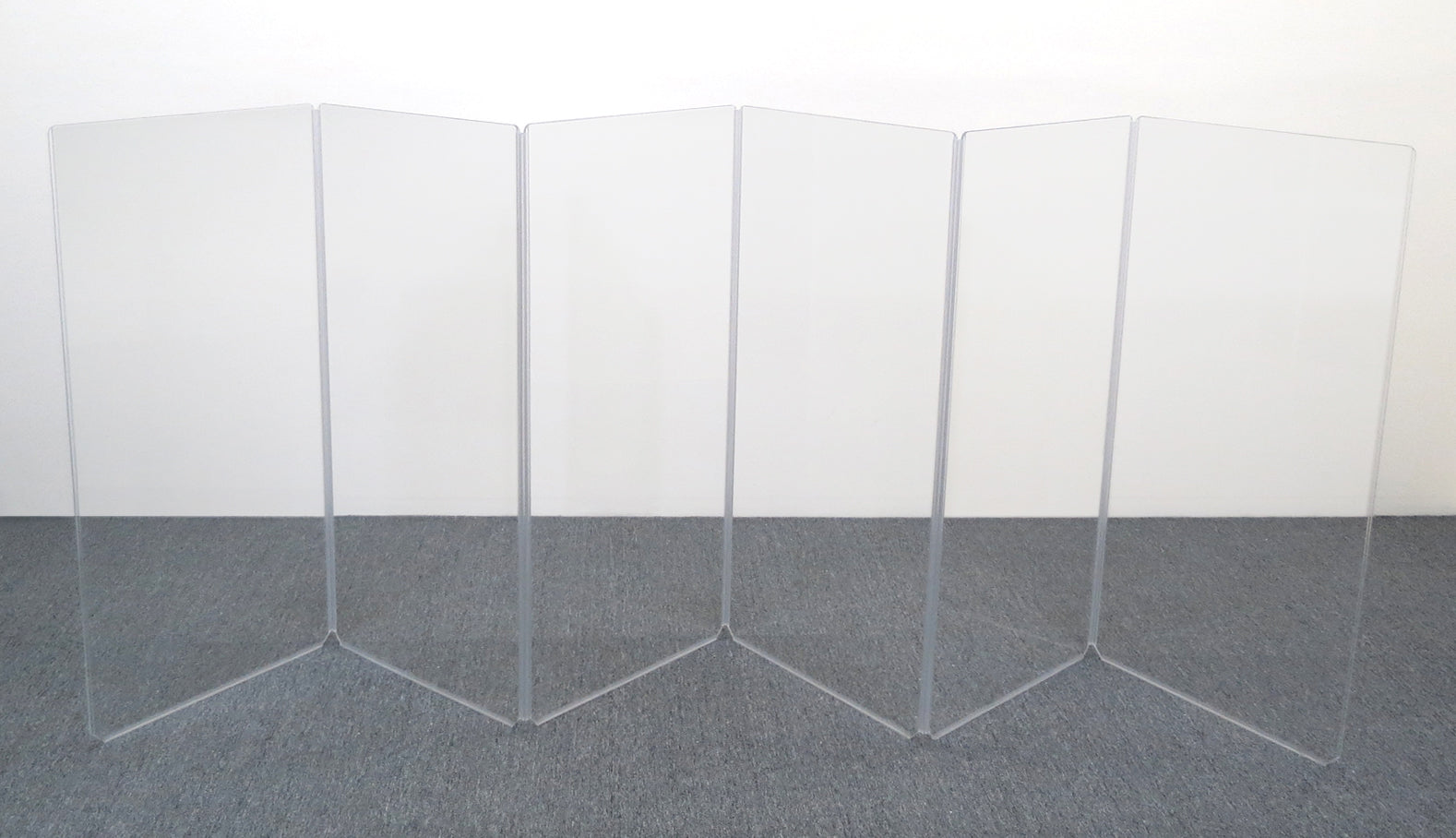

-A2448x6 – 6-panel amp shield, each panel measures 24” W x 48” H

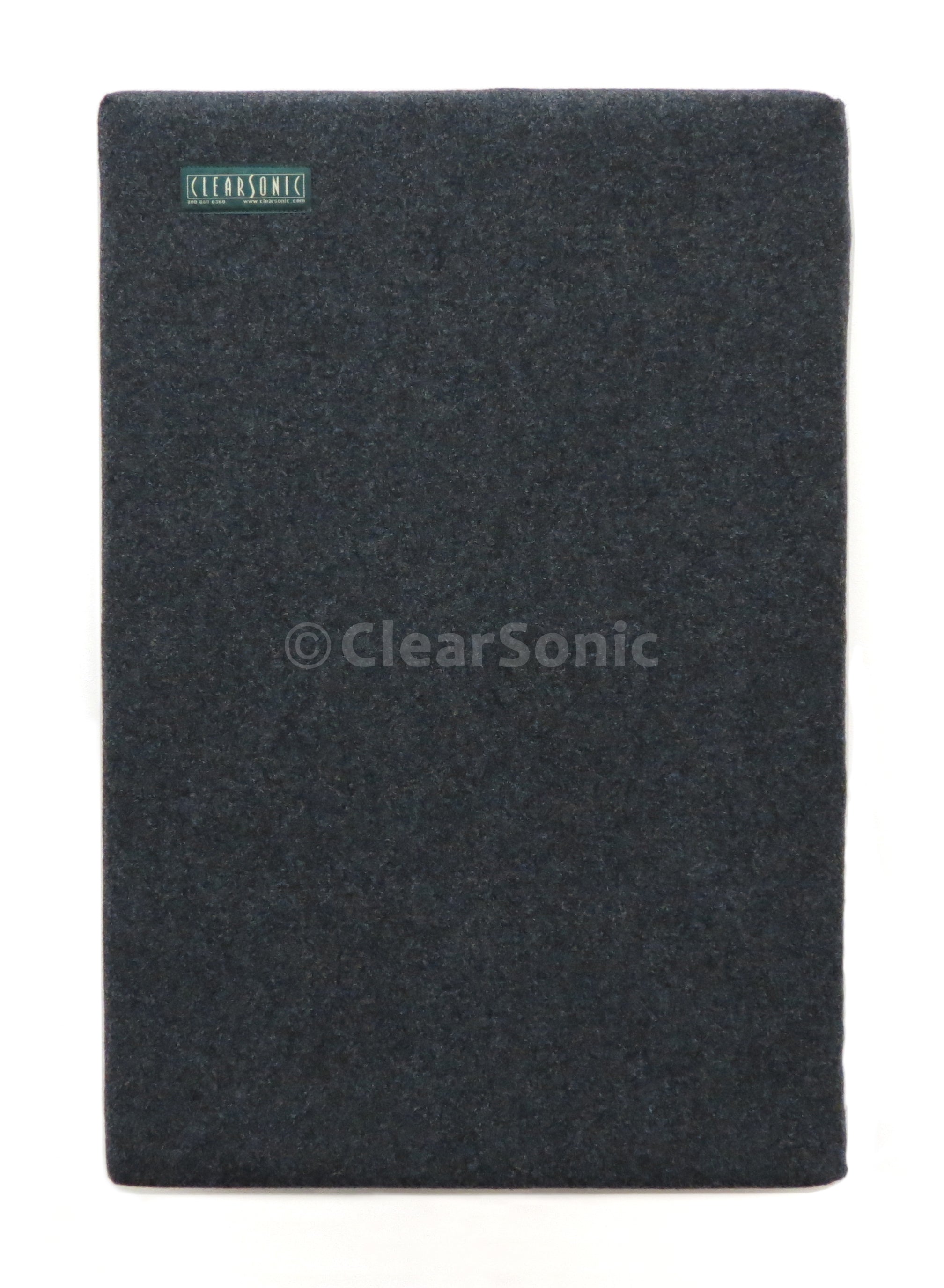

-(6)S2233 – 22” W x 33” H Sorber sound absorption baffles

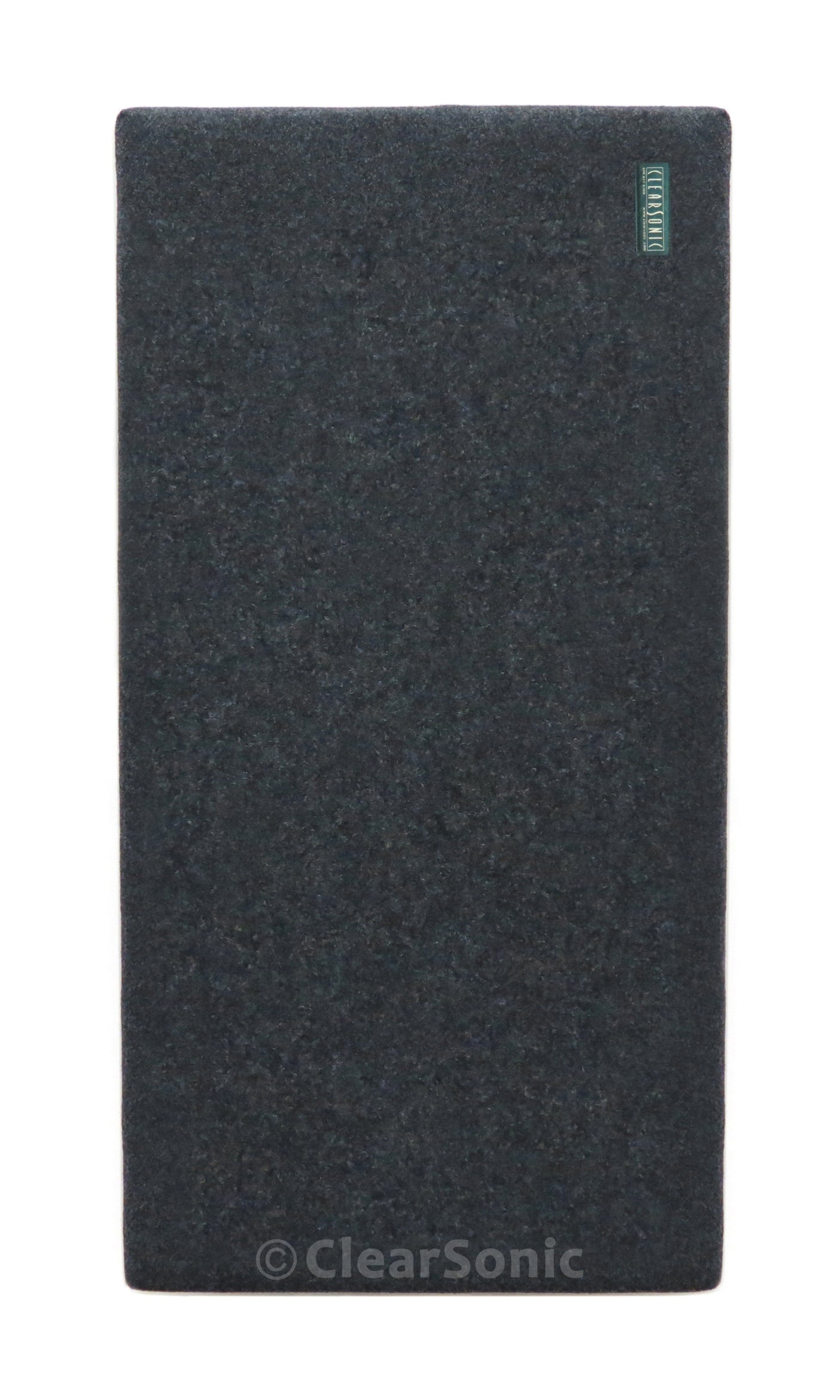

-S2448 – 24” W x 48” L Sorber Lid sound absorption baffle
