A1224x1 - 1’ W x 2’ H Acrylic Amp Shield - Single Panel with Hinge for Attachment

ClearSonic A1224x1 Acrylic Amp Shield Add-on Panel
1-panel Acrylic Sound Shield with Full-length Hinge and Cable Cutouts
Dimensions: 1’ W x 2’ H
Part Number: A1224x1


A1224x1 Features

• Use this panel to add to your existing A1224 amp shield
• Designed to work with any speaker cabinets and combo amps under 2’ H
• Perfect for stage, studio, and House of Worship settings
• Cable cutouts allow for easy cable routing to your gear
• Blocks harsh sound waves while allowing maximum amplifier performance
• Cuts down on microphone bleed & provides isolation and diffusion for cleaner mixes
• 2 square feet of coverage
• Durable, transparent acrylic offers superior sound isolation and visibility

Acrylic Amp Shield Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.


• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro.


• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.


• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.


• Low profile – allows for better aesthetics as hinge blends into the shield better.

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

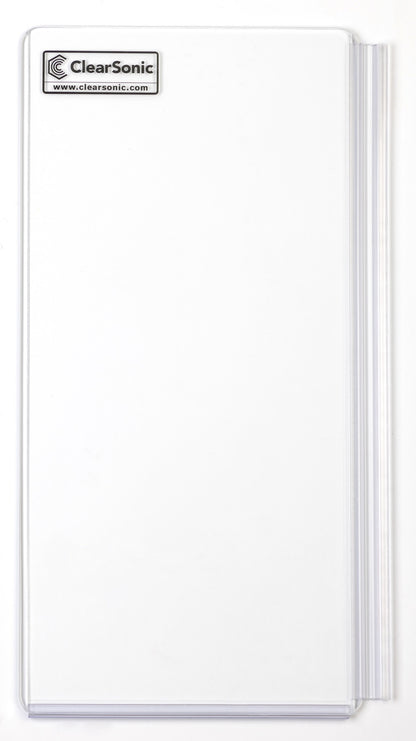

1-section ClearSonic Acrylic Guitar Amp Shield, each panel measures 12” W x 24” H

This single panel amp shield will reflect mid-to-high sound frequencies and diffuse them so that your audience’s ears won’t get overwhelmed. Use the A1224x1 to expand your existing A1224 amp shield. A hinge is included with the panel for attachment. Additionally, you can create a single panel barrier or gobo with our AS12 stabilizers.

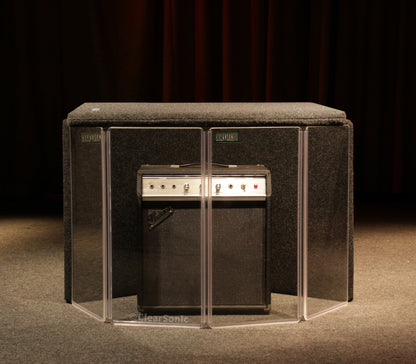

Looking for more volume reduction? Check out our AmpPacs.

Each panel is made of the highest quality ¼” thick acrylic material and features smooth finished edges, our proprietary ‘tooth in groove’ mechanical locking hinge system to ensure secure and long-lasting panel connection, and cable cutouts to easily organize cables running to your gear. Best of all, our amp shields are modular, so you can expand the width of your shield with additional A1224 panels and add Sorber sound absorption baffles to bring volume levels down.
