IPG - IsoPac G Portable Vocal Isolation Booth - 4’ W x 4’ D x 6.5’ H - 60-70% Volume Reduction

ClearSonic IsoPac G Portable Isolation Booth
Complete Vocal Iso Booth Package with Acrylic Drum Shields and Sorber Sound Absorption Baffles
Dimensions: 4’ W x 4’ D x 6.5’ H
Volume Reduction: 60-70%
Part Number: IPG

IsoPac G Features

• Modular and expandable if more room is ever needed
• Great for studio, stage, House of worship, voice over, interpretation
• Compact vocal booth for one person is great for tight spaces
• Cuts down on mic bleed and gives soundperson greater control over the mix
• The A2466x6 acrylic drum shield provides 360 degrees of coverage along with the top ST2448 Sorber Lid baffles and inner S2224 Sorber baffles to offer extensive sound isolation and absorption
• 29 square feet of sound absorbing Sorber baffles provide exceptional volume reduction of 60-70%
• Cable cutouts allow for easy cable routing to your gear
• 12” H Acrylic Drum Shield Height Extenders provide an ample 6.5’ of headroom

Acrylic Drum Shield Features

• Routered edges – provide clean and smooth edge that won’t cut your hands.


• ¼” thick acrylic material – provides durability for transporting panels. Creates acoustic separation between instruments on stage or in the studio to cut down on mic bleeding and allows everyone to hear themselves and the mix better. Adds stability that allows for modular set up to support acrylic height extenders and Sorber baffles on top, such as a LidPac, and attachment of Sorber panels, such as the S2224, directly to the acrylic panels with adhesive-backed Velcro.


• Cable cut-outs – allows space where each panel meets at the bottom for routing/organizing cables for microphones or any wired gear. Also allows less sound to escape compared to mouse hole cutouts.

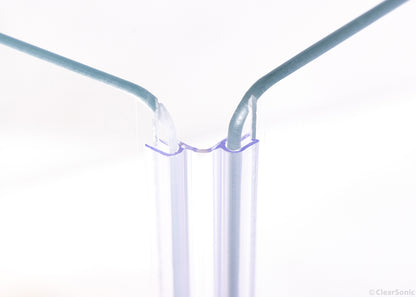

Hinge Features

• Full-length – our hinges run the full length of each acrylic panel. This extra coverage provides superior sound isolation compared to competitors whose hinges leave exposed seams between panels for sound to escape.


• Tooth in groove mechanical lock – the hinge tooth locks into the groove cut into each acrylic panel for superior connection and longer life, especially compared to Friction hinge.


• Low profile – allows for better aesthetics as hinge blends into the shield better.

• Flexibility – hinge bends 180 degrees in one direction and 90 degrees in the other allowing for accordion style folding. This makes it easier to ship, store, and transport, and allows for a more customized shield footprint.

Sorber Features

• Proprietary 1.6” thick rigid fiberglass core - provides superior sound absorption compared to acoustic foam and other fiberglass baffles. Allows panels to free stand (S2466x2) or lay on top of an acrylic shield (LidPacs).

• Velcro-receptive acoustic fabric jacket – provides another layer of sound absorption and allows Sorber baffles to attach to acrylic material or other Sorber baffles with Velcro.

• Sewn seams – fabric jacket fully covers inner fiberglass. No glue is used and there is no exposed fiberglass.

Variable footprint of about 4’ W x 4’ D x 6.5’ H – 60-70% perceived volume reduction

-Includes S2224 (22” W x 24” H) Sorber baffles and ST2448 (72” W x 48” L) Angled Sorber baffles
-Includes one aluminum telescoping support bar for maximum stability and 6” 2-speed clip-on fan to promote air circulation

ClearSonic IsoPac portable isolation booths create a more ideal acoustic space wherever you are, so you can spend less time worrying about acoustics and more time getting great sounding mixes. Our isolation booths are the perfect solution to cut down on microphone bleed and environmental noise to achieve quieter volume levels and better mixes for home and studio recording, House of Worship services, and live music venue performances. In addition to drums, they work great for guitar, horn, voice, or any sound source.

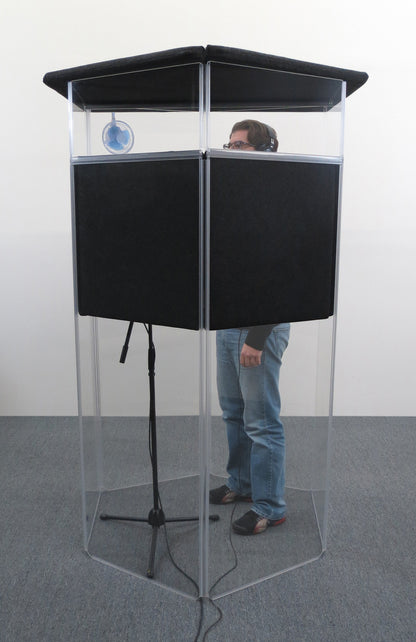

The IsoPac G is a compact vocal booth that works well in rooms with limited space and is designed to fit one person. It offers substantial sound isolation and volume reduction – just take a step inside and you will hear and feel the difference. Your vocal mic is surrounded with 360 degrees of drum shield and acoustic treatment to provide a more ideal tracking environment and will reduce external noise, so you can be sure your vocals will sound clean and clear.

The drum shield acts as a sound barrier reflecting sound back into the booth where it can be absorbed by the S2224 and ST2448 Sorber sound absorption baffles. Getting in/out is easy: the drum shield wraps all the way around, allowing the end panels that butt up against each other to act as a door.

All of our isolation booths are modular, portable, and feature full-length, flexible, yet robust plastic hinges that utilize our ‘tooth in groove’ mechanical lock to securely snap into place for a firm connection between panels, cable cutouts to easily organize cables running to your gear, sound absorbing Sorber baffles, and the highest quality ¼” thick acrylic material to provide a booth that is functional, stable, and aesthetically pleasing.

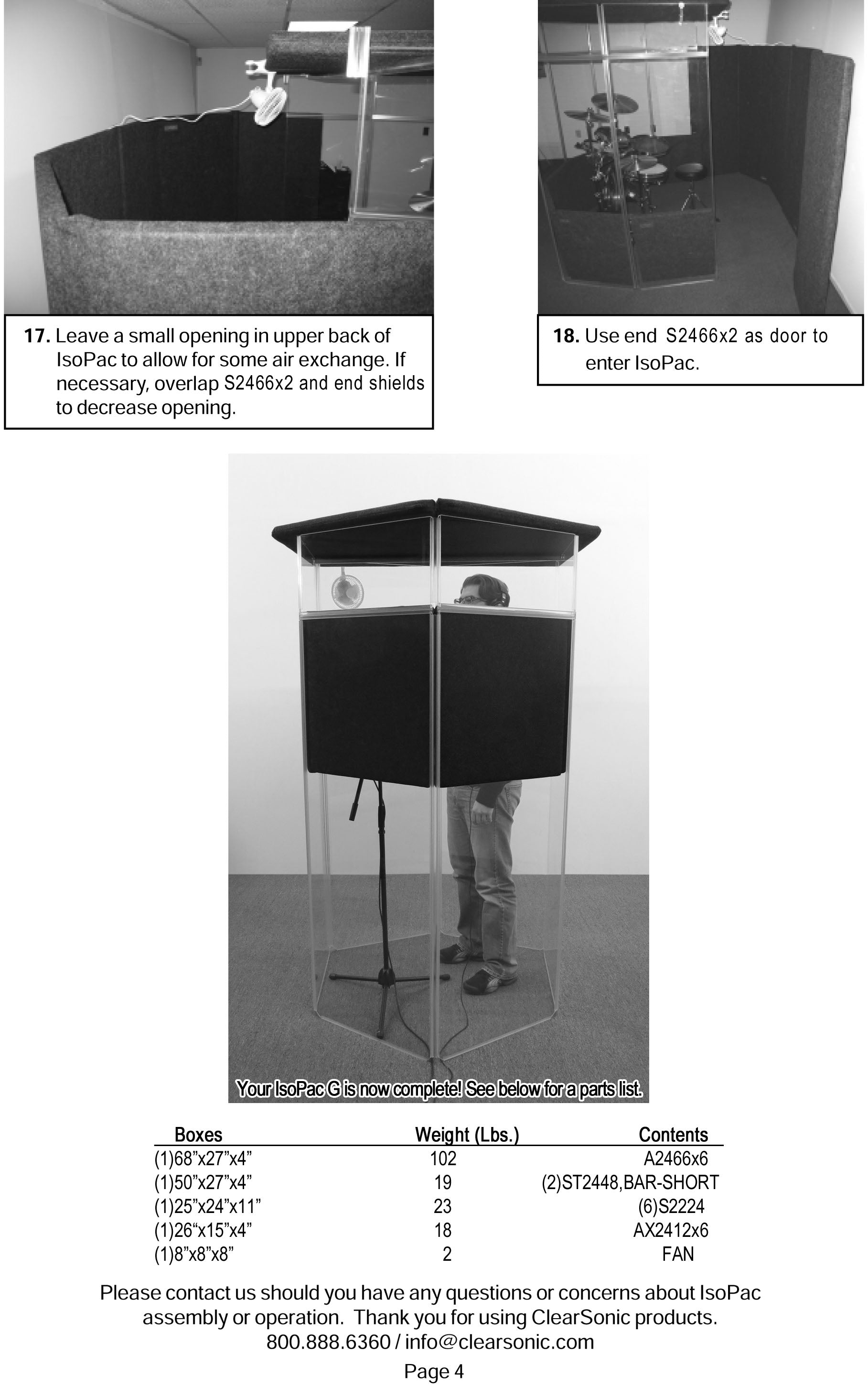

Parts List:
(1) A2466x6 – 6-panel acrylic drum shield, each panel measures 24” W x 66” H
(1) AX2412x6 – 6-panel, 12” H acrylic drum shield height extender, provides 6.5’ headroom
(6) S2224 - 22” W x 24” H Sorber sound absorption baffles
(2) ST2448 – angled 24” W x 48” L Sorber sound absorption Lid baffles
(1) Bar-Short – telescoping aluminum support bar, extends 45”-72”
(1) FAN – 6” clip-on fan with two speeds
